e-skin flat - technical details

Cleanroom cable cover

The flat cable guidance system e-skin flat consists of individual cable chambers that can be joined together. One or more cables can be put into these chambers.

There are 3 variants:

  • Closed variants
    • SKF12C [Inner height = 12mm]
    • SKF15C [Inner height = 15mm]
  • Openable variants (Chambers can be opened and closed with a zipper)
    • SKF12O [Inner height = 12mm]
Configure e-skin flat now

Design principles

e-skin® flat design principle
e-skin® flat design principle

Openable variants

With the SKF12O, cables can be replaced in minutes.

e-skin® flat design principle
e-skin® flat design principle

Fully enclosed

Protected against the ingress of particles with closed cable chambers SKF12C/SKF15C.

e-skin® flat design principle
e-skin® flat design principle

Closed & openable variants

The diagram shows two sections connected to each other; on the left, when open and, on the right, when closed.

e-skin flat installation dimensions
e-skin flat installation dimensions

Installation dimensions

  • A = 37.5mm
  • B = 100mm
  • R = 40 - 100mm
  • S = up to 3000m
  • H = from 80mm
  • Lk = S/2 + K
  • K = 3.14 x R (largest bend radius of guided cables) + 2 x 100mm + 2 x 3.75mm

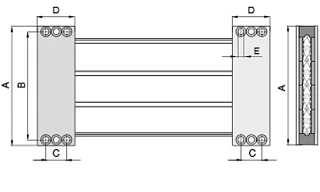

Mounting brackets

e-skin mounting brackets
e-skin mounting brackets
  • A = 68.5 - 148.5mm
  • B = 53 - 157mm
  • C = 18mm
  • D = 37.5mm

Filling options: 2 - 6 chambers

Filled with 1, 2 or 3 identical cables per chamber

eskin-befuellungsmoeglichkeit

Distribution rules

Rule 1:

  • SKF12C: [A] Inner height = 12mm | [B] Outer height = 13mm ➔ Cable diameter 10mm
  • SKF15C:  [A] Inner height = 15mm | [B] Outer height = 16 mm ➔ Cable diameter 13 mm

Rule 2:

  • SKF12O: [A] Inner height = 12mm | [B] Outer height = 13mm ➔ Cable diameter 10mm

Rule 3:

  • Pod with enclosed support chain SKF.S for unsupported lengths of the SKF12C and for the avoidance of abrasion

SKF12O and SKF12C

  1. If the cable diameter is 10mm, then only one cable in a pod
  2. If cable diameter is 6.5mm, then a maximum of 2 cables in a pod
  3. If cable diameter is 4mm, then max. 3 cables in a pod

SKF15C

  1. If cable diameter is 13mm, then only one cable in a pod
  2. If cable diameter is 8mm, then a maximum of 2 cables in a pod
  3. If cable diameter is 6mm, then a maximum of 3 cables in a pod

Assembly notes

e-skin® flat cable guidance system
e-skin® flat cable guidance system

In the case of the openable version, the sections can be opened individually.

e-skin® flat cable guidance system
e-skin® flat cable guidance system

The cables can be fitted according to your requirements. Please note that only cables with the same diameter can be placed in a chamber.

e-skin® flat cable guidance system
e-skin® flat cable guidance system

After being filled, the e-skin flat can easily be closed by hand or with the MT.SK.914.868 tool.

e-skin® flat cable guidance system
e-skin® flat cable guidance system

If several chambers are needed, additional sections can simply be added.

e-skin® flat cable guidance system
e-skin® flat cable guidance system

The tapered section at the end is clamped in place due to the mounting brackets being screwed on and there is therefore no strain on the cables.
