RBR rotating energy supply 200P
Complete system with plastic guide trough, 360° rotation angle
The Reverse Bend Radius 200P rotating energy supply is a plastic trough for measuring and handling machines. The guide is also suitable for camera applications. It requires no sliding contacts and is protected from corrosion.
Technical data:
- Maximum angle of rotation: 360°
- Outer diameter: 196mm, inner diameter: 96mm, height: 50mm
- Article Number e-chain® 06.30.018/018.0 – 14 chain links
- Mounting bracket 060.30.12PZ
- The undefined used reduces displacement forces
- No sliding contacts, all media in a single system
- Complete system with e-chain® moving arm and integrated strain relief
- Can be combined with the iglidur® PRT-01-200-TO-AT10 slewing ring bearing

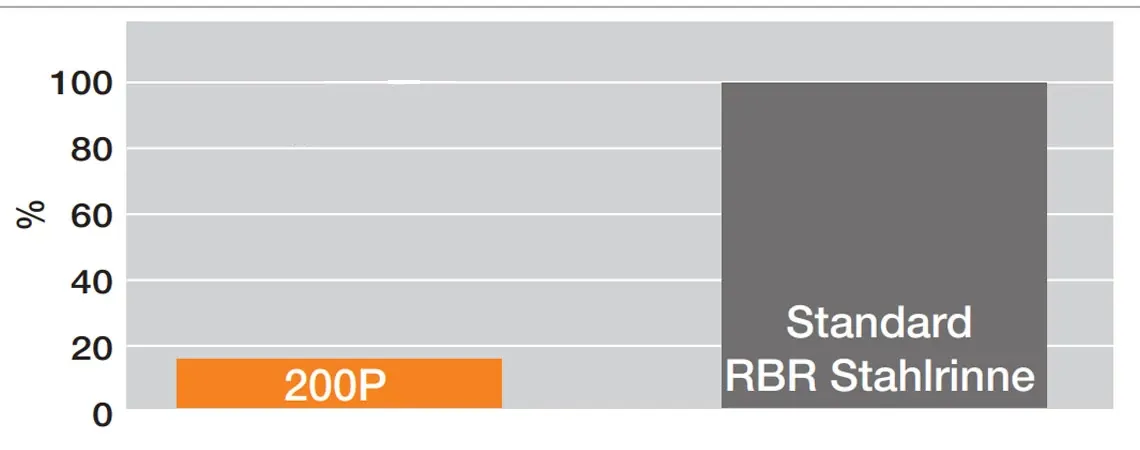

- Weight saving -85% vs. Steel guide trough
- Protected against corrosion
- 85% less weight than a comparable steel component.

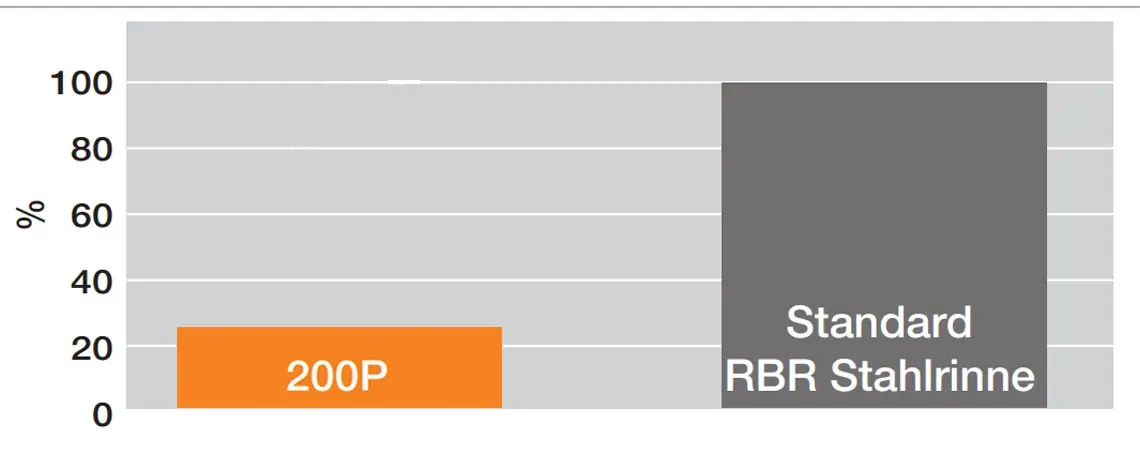

- Costs 70% less than a comparable steel guide trough
- 70 % more cost-effective than a comparable steel guide trough
- No project planning costs
- No minimum purchases – low system price, no minimum order
- Can be delivered pre-assembled - reducing on-site installation costs
- Simplified guide trough manufacturing process. Production at only one location -> 3D printer.
- No need for sheet metal cutting, rolling, welding or galvanizing/passivating.
- Can be produced from recycling material
- Have your energy chains processed as part of the igus chainge recycling program no matter which manufacturer they came from
- igus supports the circular economy for plastics and is investing in chemicla recycling
Tests
Application example with Reverse Bend Radius rotating energy supply
