Horizontal Guidelok-System

“Guidelok” upper run guide for long travels, self-supporting in chip areas

Especially for long travels on machine tools, if the e-chain® has to be gliding, metallic chips are a problem. igus® Guidelok is a cost-effective solution

Travels, unsupported up to 164 ft possible

1. Chips cannot get stuck between the glide surface of the upper and lower run

2. Modular system with few parts (also possible without lateral trough)

3. Enormous increase of unsupported lengths of e-chains®

4. Intelligent upper run guide with pivoting roller brackets

Typical industrial sectors and applications

Machine tools

Applications in the chip sector

Everywhere that a gliding application is not recommended

Design principle

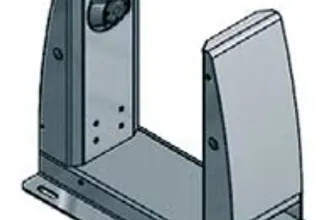

Horizontal “Guidelok” guides the e-chain® on special spring loaded roller supports (1), that are pushed back by the e-chain®´s radius, clearing its path
