readycable® extensions for AIDA

Ready-to-connect AIDA extension cables for automation

The German Automobile Manufacturers Automation Initiative (AIDA) has defined guidelines for the wiring between the switch cabinet, the robot base and the moving robotic axes. igus® readycable® follows this standard for robot cabling in the automotive industry and now offers ready-to-connect chainflex® cables for safe and reliable use in moving applications.
From the catalogue or with individualised adaptations, we offer AIDA cable configurations with HARTING push-pull components in various chainflex qualities. In addition, our extension cables offer further savings potential as the usual terminal boxes (female / female coupler) can be omitted. All ready-to-connect cables are 100% tested and marked with a test seal.
Go to online shop
Tech up

Tech up

  • 50% reduced assembly effort due to push-pull technology
  • Existing robot systems and interfaces can be extended flexibly with the thoroughly tested cable extensions
  • Ready for immediate use and harnessed ready for connection
Cost down

Cost down

  • Various cable qualities and price categories: you choose the cable with the best price/performance ratio for your robot application
Proof

Proof

  • All components meet protection class IP67
  • 100% tested
  • Tested in the  largest test laboratory  of its kind for cables in moving applications
Sustainability

Sustainability

  • Guaranteed service life in all igus® e-chains® – up to 36-month guarantee
  • Equip robot applications with durable extension cables and longer maintenance intervals

All details about AIDA harnessed cables at a glance

Part No.Cable typeAxis typeNumber of cores and conductor nominal cross section     Outer diameter
   [mm²][mm]
MAT904117091AIDA Profinet - RJ-45Extension cable 7th axis4x0.38)C          7.0 order
MAT904117092AIDA Profinet FOCExtension cable 7th axis1x980/1,000μm          7.0 order
MAT904117093AIDA PowerExtension cable 7th axis5G2.5          10.5 order
MAT904117094AIDA SignalExtension cable 7th axis5x(2x0.5))C          10.5 order
MAT904117095AIDA SignalExtension cable 1-6. Axis(2x(2x0.34))C          8.5 order
MAT904117097AIDA SignalExtension cable 1. Axis5          10.5 order
MAT904117098AIDA SignalExtension cable 1. Axis5x(2))C          12.5 order

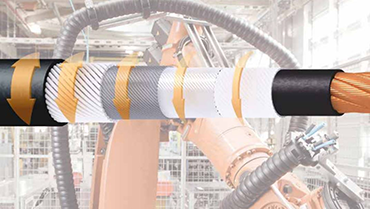

Structure of a chainflex robot cable

chainflex cables for robots
Cores, stranded structure, shields and jacket materials must compensate for high alternating bending loads as well as cable diameter changes due to torsional movements. For the said specific stress in the three-dimensional area, the structure of robot cables must have a combination of soft and sliding construction elements. Filling elements are used which can absorb occurring forces such as torsions. For this purpose, PTFE elements and rayon threads are installed. chainflex robot cables also contain a special combination of PTFE liners so that the torsion-optimised shield assemblies can carry out necessary compensatory movements.

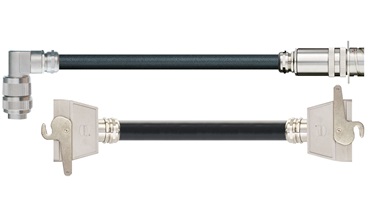

readycable robot cables

readycable robot cables Energy supply for robots made configurable online. We can offer you an optimised solution for almost every robot from a selection of over 5,000 different articles.


Harnessed readycable robot cables

chainflex robot cables

Robot cables
chainflex® robot cables are used in energy chains, robots or 3D applications. We give a 36-month guarantee on all our cables with a confidence based on our more than 30 years of experience in our 3,800m² test laboratory.
Click here

Harnessing readychain

readychain portfolio Ready-to-install energy chain systems and harnessed cables. All ready-to-connect cables have been fully and thoroughly tested and can be ordered in the required length (with centimetre accuracy), with no minimum order quantity.
