xiros® A500 - for high temperatures

xiros® ball bearings open new fields of application for plastic bearing technology.

xiros® bearings with ball races made from the high-performance polymer iglide® A500 offer an excellent wear rate in comparison with other high-temperature plastics.

Maintenance- and lubrication-free

For temperatures up to 302° F

Corrosion resistant

Non-magnetic and washable

Chemical resistant

FDA compliant

Predictable lifetime

Lightweight

For 3-20 mm shaft diameter

Industries: Medical, chemical, food, pharmaceutical, biotechnology, plant engineering.

Balls:

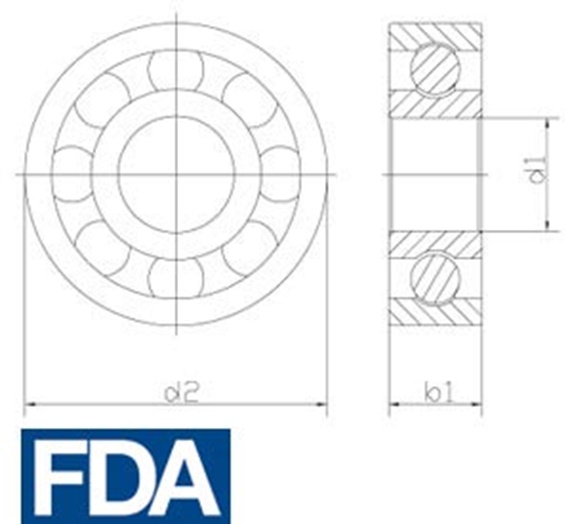

Part No.	Rings	Cage	Balls	Inner Ø d1	Outer Ø d2	Width b1	Max. stat. axial load	Stat. load capa city	Dyn. load capa city	Limit speed	Weight
				[mm]	[mm]	[mm]	[lbs]	[lbs]	[lbs]	[rpm]	[g]
B623A7E	A500	PEEK	Stainless steel	3	10	4	6.75	6.08	6.75	5000	0.4	23.73 USD
B624A7E	A500			4	13	5	12.6	6.75	9	4550	1	24.86 USD
B635A7E	A500	PEEK	Stainless steel	5	19	6	765	10.8	11.7	3400	1.14	28.86 USD
B625A7E	A500	PEEK	Stainless steel	5	16	5	832.5	8.1	9.68	3700	0.66	25.74 USD
B636A7E	A500	PEEK	Stainless steel	6	22	7	551.25	16.2	17.1	2450	1.81	31.09 USD
B626A7E	A500	PEEK	Stainless steel	6	19	6	28.13	12.15	13.5	3400	2.3	28.53 USD
B627A7E	A500	PEEK	Stainless steel	7	22	7	585	16.2	16.65	2600	1.76	32.95 USD
B628A7E	A500	PEEK	Stainless steel	8	24	8	562.5	22.05	23.4	2500	2.49	32.65 USD
B638A7E	A500	PEEK	Stainless steel	8	28	9	517.5	22.95	24.3	2300	3.82	49.73 USD
B688A7E	A500	PEEK	Stainless steel	8	16	5	708.75	8.1	8.55	3150	0.54	20.91 USD
B608A7E	A500	PEEK	Stainless steel	8	22	7	49.5	16.2	17.55	2700	3.7	30.17 USD
B629A7E	A500	PEEK	Stainless steel	9	26	8	528.75	22.95	25.2	2350	2.86	31.77 USD
B6200A7E	A500	PEEK	Stainless steel	10	30	9	472.5	28.35	29.7	2100	4.22	52.07 USD
B6800A7E	A500	PEEK	Stainless steel	10	19	5	517.5	9.45	10.35	2300	0.73	20.70 USD
B6000A7E	A500	PEEK	Stainless steel	10	26	8	85.5	22.95	24.07	2100	6	28.60 USD
B6201A7E	A500	PEEK	Stainless steel	12	32	10	409.5	29.7	31.73	1820	5.11	54.33 USD
B6801A7E	A500	PEEK	Stainless steel	12	21	5	483.75	12.15	12.83	2150	0.83	18.30 USD
B6001A7E	A500	PEEK	Stainless steel	12	28	8	94.5	23.63	27.9	2000	0	29.69 USD
B6202A7E	A500	PEEK	Stainless steel	15	35	11	360	30.38	32.85	1600	6.34	58.48 USD
B6802A7E	A500	PEEK	Stainless steel	15	24	5	432	16.2	17.1	1920	0.99	17.86 USD
B6002A7E	A500	PEEK		15	32	9	99	29.7	32.63	1850	9.1	49.77 USD
B6003A7E	A500	PEEK	Stainless steel	17	35	10	402.75	31.05	34.2	1790	5.43	54.08 USD
B6203A7E	A500	PEEK	Stainless steel	17	40	12	326.25	51.3	52.2	1450	8.85	67.08 USD
B6803A7E	A500	PEEK	Stainless steel	17	26	5	396	18.9	18.9	1760	1.09	18.21 USD
B6204A7E	A500	PEEK	Stainless steel	20	47	14	285.75	52.65	53.55	1270	15.28	89.54 USD
B6804A7E	A500	PEEK	Stainless steel	20	32	7	351	20.25	20.93	1560	2.5	27.34 USD
B6004A7E	A500	PEEK	Stainless steel	20	42	12	146.25	52.65	56.25	1700	19.7	66.99 USD
B6205A7E	A500	PEEK	Stainless steel	25	52	15	247.5	78.3	80.1	1100	19.46	98.49 USD
B6805A7E	A500	PEEK	Stainless steel	25	37	7	220.5	29.7	30.38	980	2.97	28.94 USD
B6005A7E	A500	PEEK	Stainless steel	25	47	12	337.5	91.13	94.5	1500	11.76	71.42 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

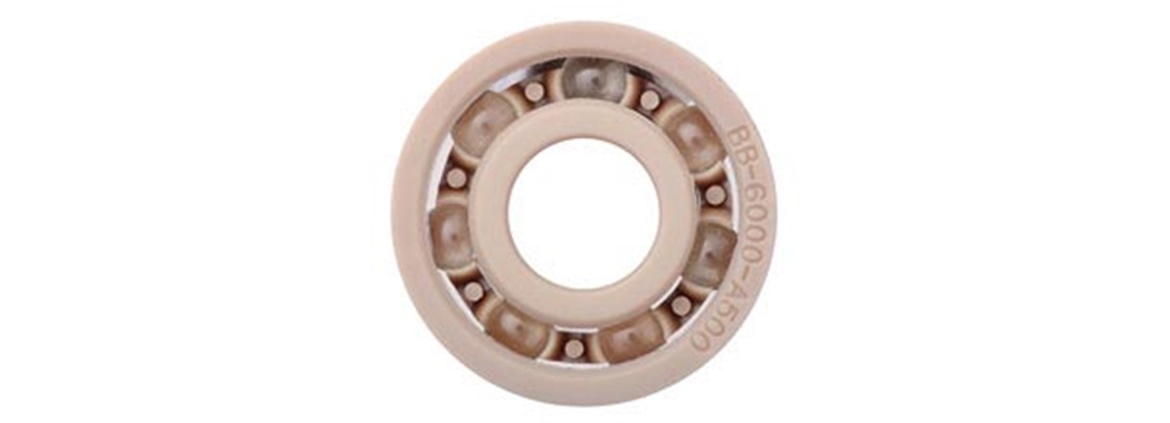

xiros® A500 - maximum corrosion resistance

xiros® A500 plastic ball bearings - in combination with a PEEK cage and glass balls - are often used in environments where high chemical resistance is required and stainless steel components should be avoided entirely.

Maintenance- and lubrication-free

For temperatures up to 302° F

Corrosion resistant

Non-magnetic and washable

Chemical resistant

FDA compliant

Predictable lifetime

Lightweight

Electrically insulating

For 3-20 mm shaft diameter

Balls:

Part No.	Rings	Cage	Balls	Inner Ø d1	Outer Ø d2	Width b1	Max. stat. axial load	Stat. load capa city	Dyn. load capa city	Limit speed	Weight
				[mm]	[mm]	[mm]	[lbs]	[lbs]	[lbs]	[rpm]	[g]
B623A7G	A500	PEEK	Glass	3	10	4	6.75	6.75	9	5000	0.2	71.42 USD
B624A7G				4	13	5	12.6	9	11.7	4550	0.42	24.86 USD
B625A7G	A500	PEEK	Glass	5	16	5	832.5	8.1	9.68	3700	0.64	25.74 USD
B635A7G	A500	PEEK	Glass	5	19	6	765	10.8	11.7	3400	1.12	28.86 USD
B626A7G	A500	PEEK	Glass	6	19	6	28.13	13.5	18	3400	1.09	28.53 USD
B636A7G	A500	PEEK	Glass	6	22	7	551.25	16.2	17.1	2450	1.75	31.09 USD
B627A7G	A500	PEEK	Glass	7	22	7	585	16.2	16.65	2600	1.7	32.95 USD
B688A7G	A500	PEEK	Glass	8	16	5	708.75	8.1	8.55	3150	0.53	20.91 USD
B608A7G	A500	PEEK	Glass	8	22	7	49.5	16.2	22.5	2700	1.64	30.17 USD
B628A7G	A500	PEEK	Glass	8	24	8	562.5	22.05	23.4	2500	2.3	32.65 USD
B638A7G	A500	PEEK	Glass	8	28	9	517.5	22.95	24.3	2300	3.63	49.73 USD
B629A7G	A500	PEEK	Glass	9	26	8	528.75	22.95	25.2	2350	2.67	31.77 USD
B6800A7G	A500	PEEK	Glass	10	19	5	517.5	9.45	10.35	2300	0.72	20.70 USD
B6000A7G	A500	PEEK	Glass	10	26	8	85.5	22.95	31.5	2100	2.59	28.60 USD
B6200A7G	A500	PEEK	Glass	10	30	9	472.5	28.35	29.7	2100	4.04	52.07 USD
B6801A7G	A500	PEEK	Glass	12	21	5	483.75	12.15	12.83	2150	0.82	18.30 USD
B6001A7G				12	28	8	94.5	29.25	34.88	2000	2.87	29.69 USD
B6201A7G	A500	PEEK	Glass	12	32	10	409.5	29.7	31.73	1820	4.93	54.33 USD
B6802A7G	A500	PEEK	Glass	15	24	5	432	16.2	17.1	1920	0.98	17.86 USD
B6002A7G	A500	PEEK		15	32	9	99	36.23	37.8	1850	4.03	49.77 USD
B6202A7G	A500	PEEK	Glass	15	35	11	360	30.38	32.85	1600	6.16	58.48 USD
B6803A7G	A500	PEEK	Glass	17	26	5	396	18.9	18.9	1760	1.08	18.21 USD
B6003A7G	A500	PEEK	Glass	17	35	10	402.75	31.05	34.2	1790	5.24	54.08 USD
B6203A7G	A500	PEEK	Glass	17	40	12	326.25	51.3	52.2	1450	8.79	67.08 USD
B6804A7G	A500	PEEK	Glass	20	32	7	351	20.25	20.93	1560	2.44	27.34 USD
B6004A7G	A500	PEEK	Glass	20	42	12	146.25	56.25	72	1700	9.25	66.99 USD
B6204A7G	A500	PEEK	Glass	20	47	14	285.75	52.65	53.55	1270	14.25	89.54 USD
B6805A7G	A500	PEEK	Glass	25	37	7	220.5	29.7	30.38	980	2.91	28.94 USD
B6005A7G	A500	PEEK	Glass	25	47	12	337.5	91.13	94.5	1500	10.72	71.42 USD
B6205A7G	A500	PEEK	Glass	25	52	15	247.5	78.3	80.1	1100	17.57	98.49 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

xiros® A500 - economic alternative

xiros® A500 plastic ball bearings - in combination with a PA cage and stainless steel balls - are the economic alternative in the xiros® A500 range, when you don't have to worry about chemicals in your application.

Maintenance- and lubrication-free

For temperatures up to 302° F

Corrosion resistant

Non-magnetic and washable

Predictable lifetime

Lightweight

Electrically insulating

Balls:

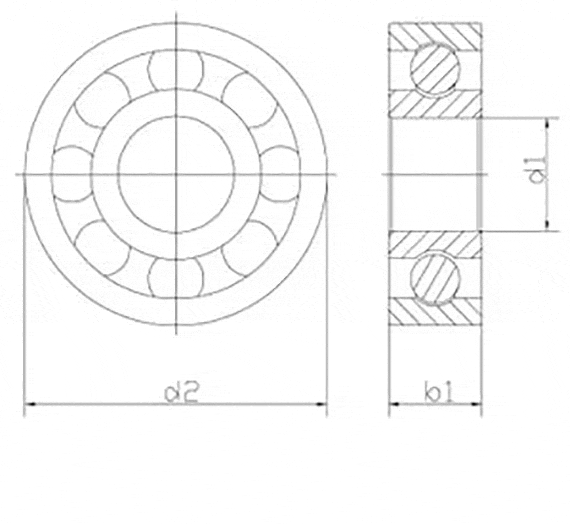

Part No.	Rings	Cage	Balls	Inner Ø d1	Outer Ø d2	Width b1	Max. stat. axial load	Stat. load capa city	Dyn. load capa city	Limit speed	Weight
				[mm]	[mm]	[mm]	[lbs]	[lbs]	[lbs]	[rpm]	[g]
B6003A1E												Upon request
B6005A1E												24.30 USD
B6200A1E												Upon request
B6201A1E												Upon request
B6202A1E												Upon request
B6203A1E												Upon request
B6204A1E												Upon request
B6205A1E												Upon request
B624A1E												Upon request
B625A1E												5.78 USD
B627A1E												Upon request
B628A1E												Upon request
B629A1E												Upon request
B635A1E												6.47 USD
B636A1E												Upon request
B638A1E												Upon request
B6800A1E												Upon request
B6801A1E												Upon request
B6802A1E												5.93 USD
B6803A1E												6.00 USD
B6804A1E												Upon request
B6805A1E												Upon request
B688A1E												Upon request
B623A1E	A500	PA	Stainless steel	3	10	4	6.75	6.75	9	5000	0.4	5.40 USD
B626A1E	A500	PA	Stainless steel	6	19	6	28.13	13.5	18	3400	2.3	6.38 USD
B608A1E	A500	PA	Stainless steel	8	22	7	49.5	16.2	22.5	2700	3.7	8.70 USD
B6000A1E	A500	PA	Stainless steel	10	26	8	85.5	22.95	31.5	2100	6	9.73 USD
B6001A1E	A500	PA	Stainless steel	12	28	8	94.5	29.25	34.88	2000	0	9.64 USD
B6002A1E	A500	PA		15	32	9	99	36.23	37.8	1850	9.1	16.91 USD
B6004A1E	A500	PA	Stainless steel	20	42	12	146.25	56.25	72	1700	19.4	22.78 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

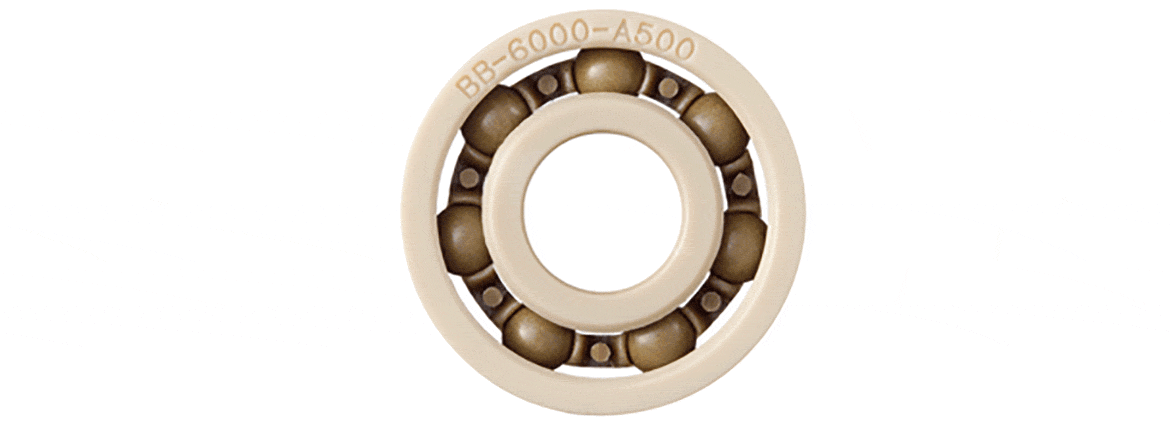

xiros® A500 - highest wear resistance

xiros® A500 plastic ball bearings are also available with plastic balls. This can improve wear resistance by a factor of 3 in an application involving low loads.

Maintenance- and lubrication-free

For temperatures up to 302° F

Corrosion resistant

Non-magnetic and washable

Chemical resistant

Predictable lifetime

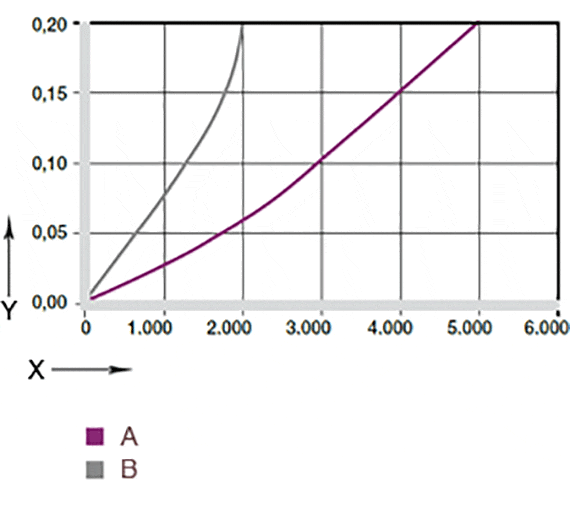

N = 500 rpm, F = 20 N, T = +73 °F

X = run time [h]

Y = radial clearance enlargement by approx [mm]

A = with plastic balls

B = with 1.4401 balls

Balls:

Part No.	Rings	Cage	Balls	Inner Ø d1	Outer Ø d2	Width b1	Max. stat. axial load	Stat. load capa city	Dyn. load capa city	Limit speed	Weight
				[mm]	[mm]	[mm]	[lbs]	[lbs]	[lbs]	[rpm]	[g]
B626A7P	A500	PEEK	Polyamide-imide	6	19	6	28.13	3.38	4.5	3200	1.4	43.95 USD
B608A7P	A500	PEEK	Polyamide-imide	8	22	7	49.5	4.05	5.63	2700	2.2	47.87 USD
B6000A7P	A500	PEEK	Polyamide-imide	10	26	8	85.5	5.63	7.65	2100	3.4	50.47 USD
B6002B2PA	A500	PEEK	Polyamide-imide	15	32	9	27	7.2	9.22	1800	5.6	87.68 USD
B6004A7P	A500	PEEK	Polyamide-imide	20	42	12	36	13.95	19.8	1100	11.7	124.89 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Recommended hole and shaft tolerance for xiros® radial grooved ball bearings
As standard, we recommend an H7 tolerance for the housing bore of the xiros® radial grooved ball bearing and an H6 tolerance for the shaft. If you have any particular questions about the design of your hole and shaft, we'd be glad to hear from you.

More information:

xiros® Material data

xiros® polymer ball bearing design, applications, development and testing

3D CAD data on xiros® A500 polymer ball bearing
