Extremely confined spaces, space saving
Low friction value
Lifetime predictable
For temperatures up to 176ºF
Ordering number | Inner-Ø | Outer-Ø | Width | Max. stat. load capacity |
Load capacity | Max. speed |
Weight | |||
---|---|---|---|---|---|---|---|---|---|---|

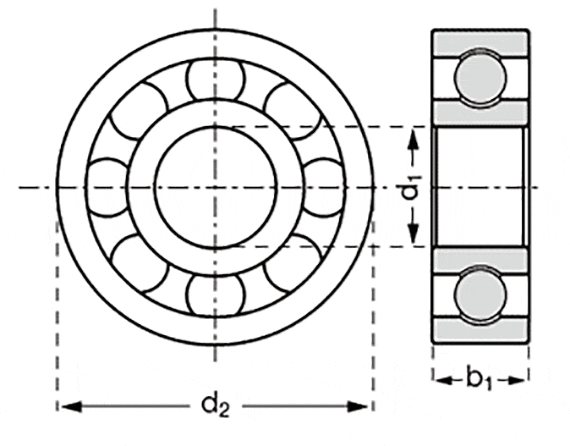

d1 [mm] | d2 [mm] | b1 [mm] | axial [lbs] | stat. [lbs] | dyn. [lbs] | [min-1] | [g] | |||
B16006B1E | 30 | 55 | 9 | 63 | 94.5 | 202.5 | 18.1 | 33.43 USD | ||
B16006B1G | 30 | 55 | 9 | 63 | 94.5 | 202.5 | 12.5 | 34.38 USD | ||
B6800B3E | 10 | 19 | 5 | 9.68 | 10.13 | 810 | 1.6 | 3.17 USD | ||
B6801B3E | 12 | 21 | 5 | 13.5 | 14.4 | 731.25 | 1.9 | 3.27 USD | ||
B6802B3E | 15 | 24 | 5 | 18 | 18.68 | 652.5 | 2.5 | 3.17 USD | ||
B6704B3E | 20 | 27 | 4 | 6.75 | 8.1 | 315 | 1.4 | 3.17 USD | ||
B6705B3E | 25 | 32 | 4 | 7.2 | 8.55 | 270 | 1.6 | Upon request | ||
B6706B3E | 30 | 37 | 4 | 7.65 | 9.22 | 225 | 1.8 | 3.17 USD |
Order number | Cage | Balls | ||
---|---|---|---|---|
B16006B1E | PA | Stainless steel | 33.43 USD | |
B16006B1G | Stainless steel | 34.38 USD | ||
B6800B3E | xirodur B180 | Stainless steel | 3.17 USD | |
B6801B3E | xirodur B180 | Stainless steel | 3.27 USD | |
B6802B3E | xirodur B180 | Stainless steel | 3.17 USD | |
B6704B3E | xirodur B180 | Stainless steel | 3.17 USD | |
B6705B3E | xirodur B180 | Stainless steel | Upon request | |
B6706B3E | xirodur B180 | Stainless steel | 3.17 USD |
