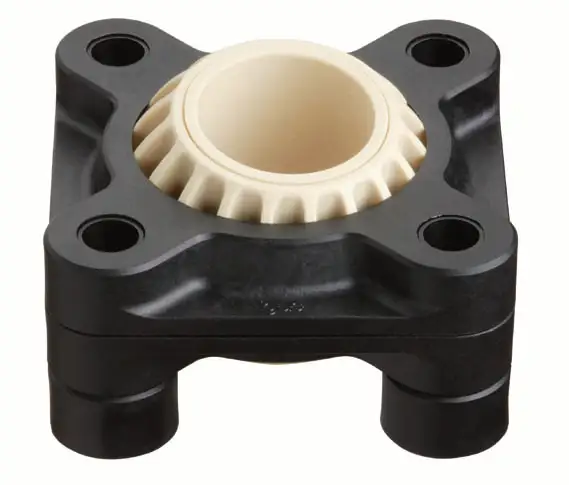

Flange bearing with 4 mounting holes and split housing, KFSM GT igubal®, spherical ball iglidur® J

igubal® flange bearings

igubal® flange bearings have been developed for supporting the centre or ends of shafts.

The housing is made from RN33, a material with good dimensional stability, a high surface quality and low warpage.

Here, the spherical ball is made from iglidur® J material, which is known for its low moisture absorption, low coefficients of friction during dry operation and an extremely low tendency to stick-slip. This is especially important for low loads and very slow movements.

• Preassembled delivery
• Option with push in feet
• Dirt-resistant
• Very lightweight
• Maintenance-free dry operation
• Lightweight
• Low installation space
• For high static loads
• High rigidity and durability
• Predictable service life
• Maintenance-free dry operation

Typical application areas

• Plant construction
• Automation
• Agricultural machines
• Mechanical engineering
• Food industry

  You will find plenty of additional application areas at our Industry solutions



When to use it? If chemical resistance is required If a cost-effective option is required If you need dirt-resistant bearings To adjust misalignments

When not to use it? If temperatures are higher than +80 °C If an integrated adjusting ring is required If diameters above 50 mm are required If rotation speeds higher than 0.5 m/s are required Use our filter options to find the suitable product

Application areas

Since igubal® flange bearings are designed for maintenance-free dry operation, they are especially suitable for applications in which access to the bearing is limited, in moist or wet environments or clean room environments. As a result, igubal® flange bearings are used for instance in wash-brush controls, in facade sunscreen systems, in material handling technology and in bakery equipment.
Assembly

A precise alignment of the bearing housing is not required as the flange bearing automatically compensates for error. Special adjusting rings can be used to fix the shaft.
