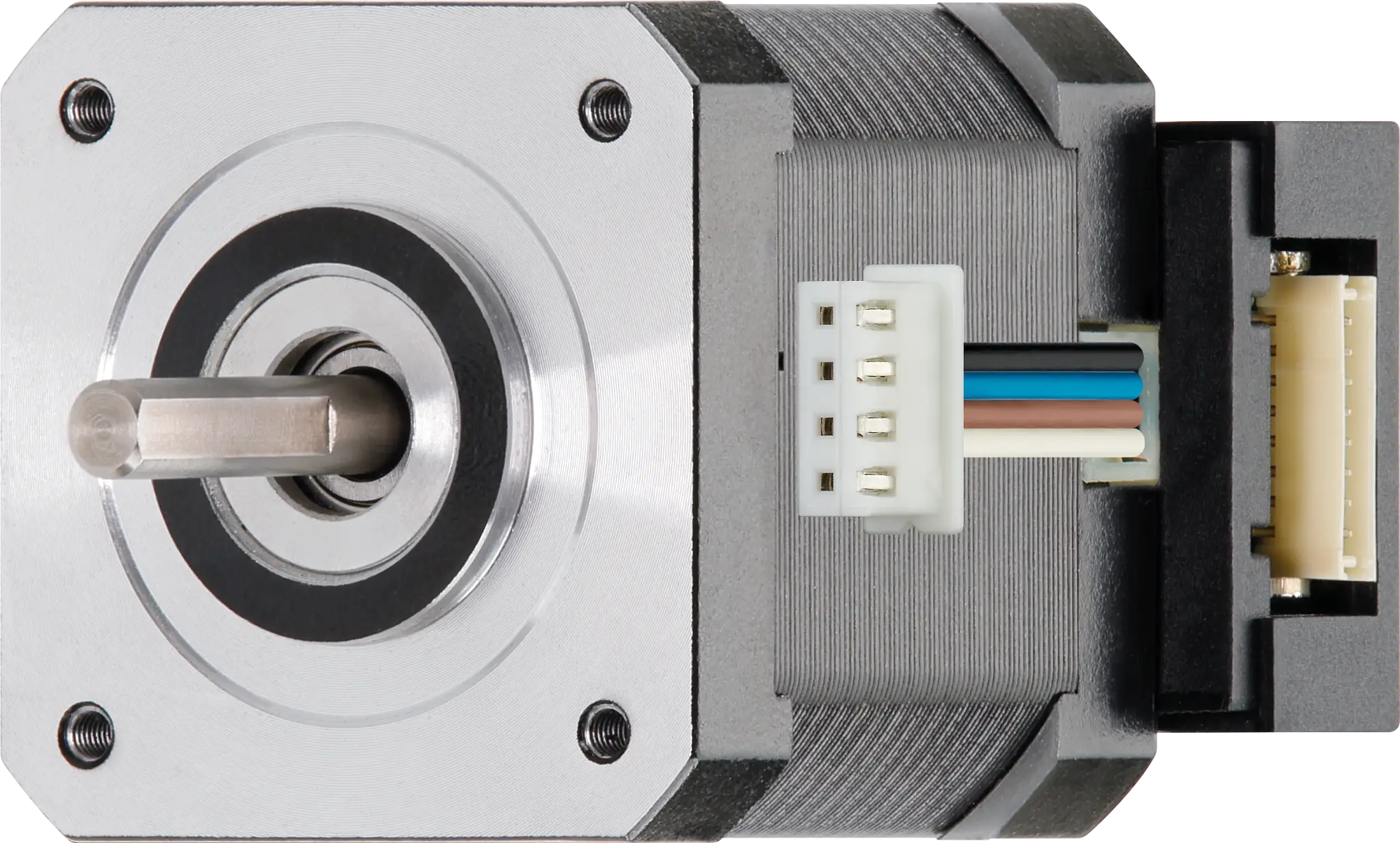

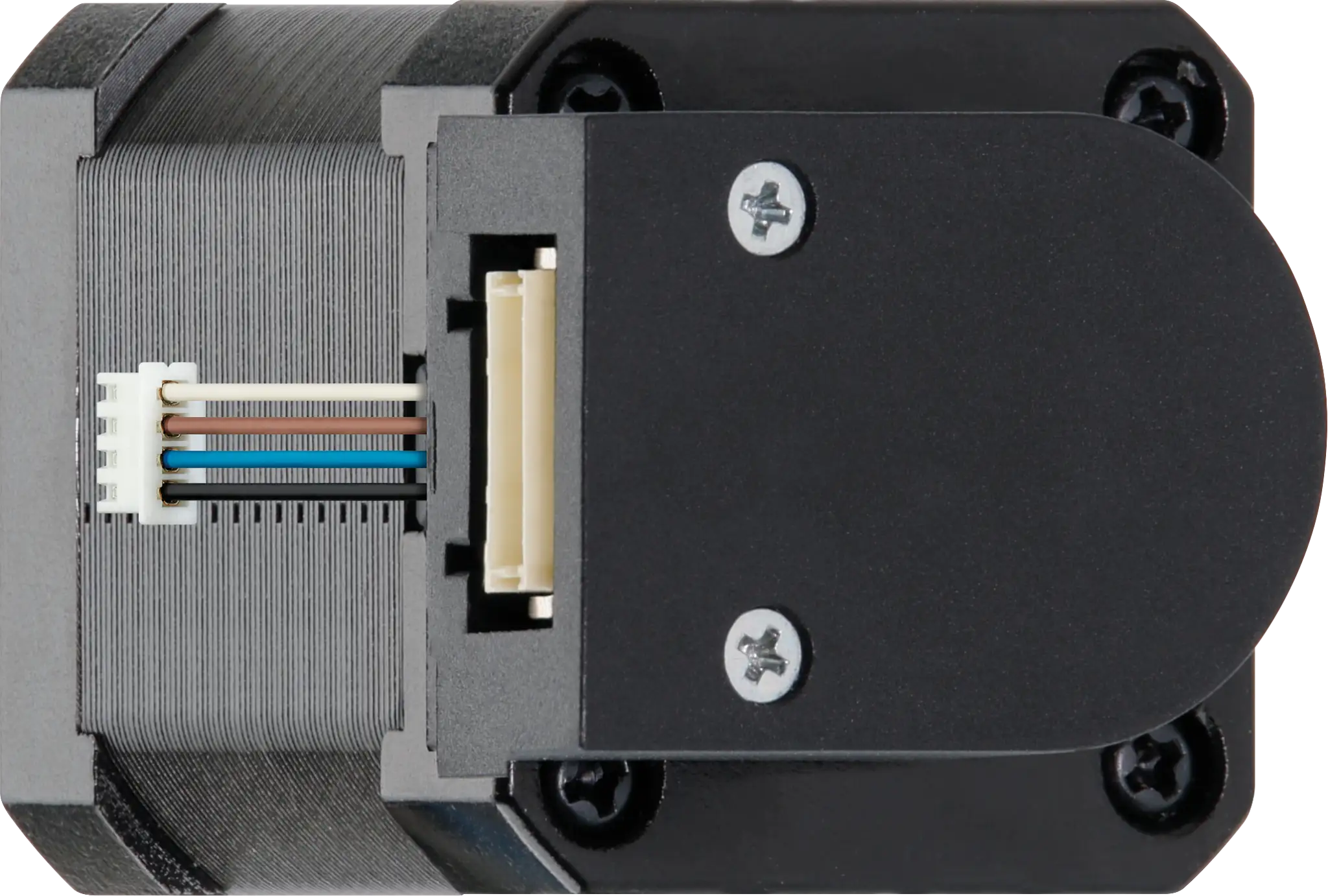

MOT-AN-S-060-005-042-L-C-AAAC product image

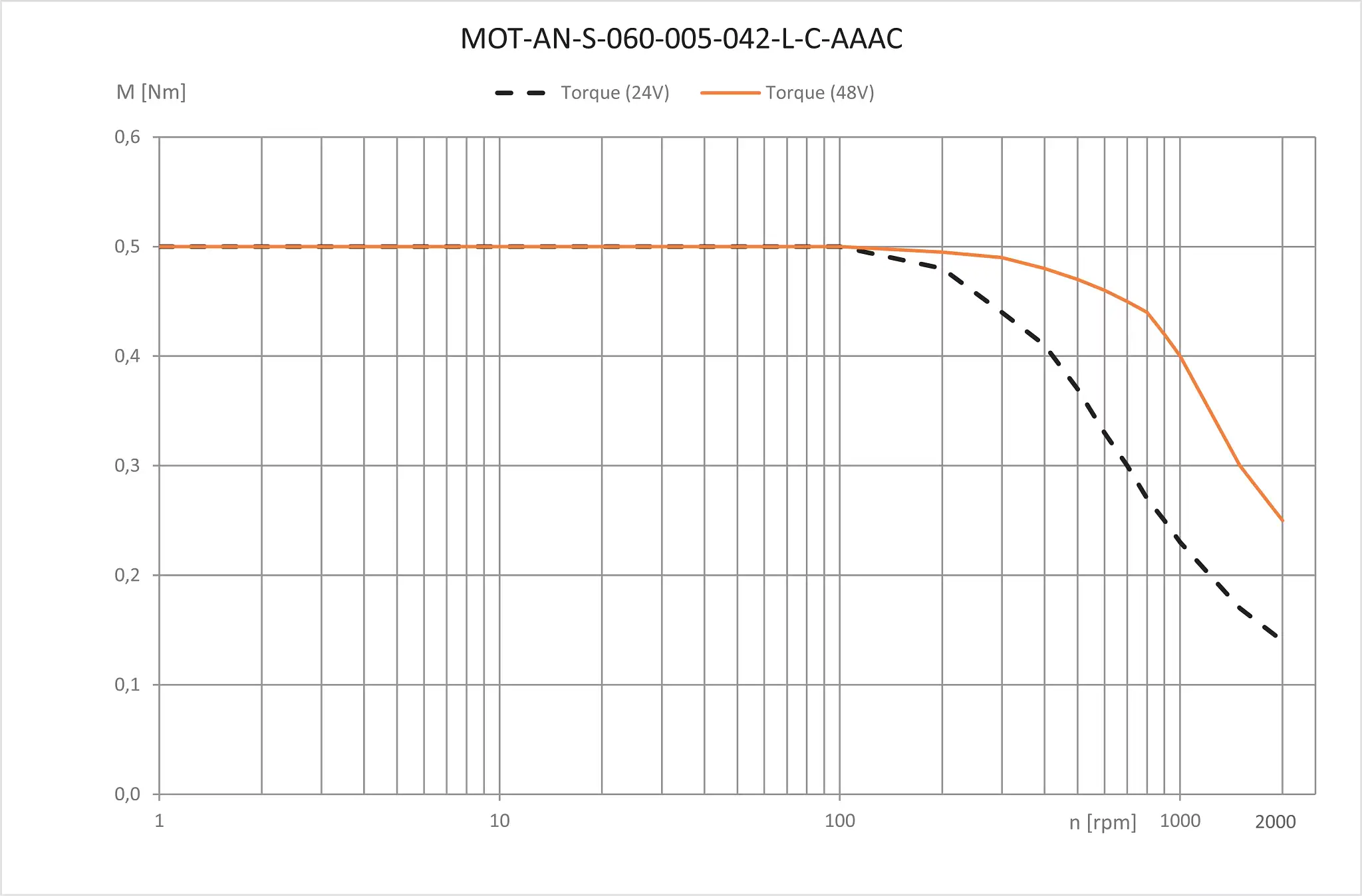

MOT-AN-S-060-005-042-L-C-AAAC technical drawing

1 of 5

drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA17

Installation Size: NEMA 17 / flange dimension 42 mm
Protection class: IP40
Holding torque: 0.50 Nm
Nominal current: 1.80 A
Motor connections: stranded wires with JST connector, encoder with JST connector

Item no.

MOT-AN-S-060-005-042-L-C-AAAC

NEMA17: small, but lots of power

This little motor has impressive torque and high RPMs. Reliable operation with quick movements for low loads.

Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.

Motors with stranded wires are the least expensive and the most common stepper motors. The connecting wires for this type exit from the housing and will be connected with a JST connector. They are usually installed in machines and equipment that have an additional housing or are used in clean environments.
